Smart Goggles assembly

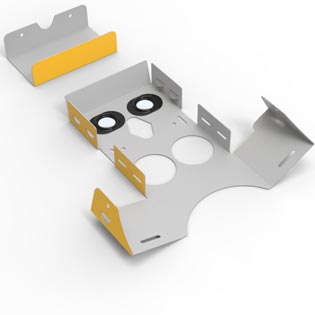

Affix plastic elements B.

Firmly press plastic elements

B to A

Smart Goggles assembly

Fold the goggles elements

as illustrated

Smart Goggles assembly

Fold the goggles elements

as illustrated

Smart Goggles assembly

Reverse the assembled
goggles holes up

With plastic screws

or rivets connect the body

of the goggle with

an external flap

Smart Goggles assembly

Place the smartphone into

the  goggles. Adjust distance between the lenses to get

the best image quality

Smart Goggles - logo

Goggle assembly (standard version)

Smart Goggles assembly

TOP

LENS

Lenses must be put more convex side up

Smart Goggles assembly

Place the cardboard box on a flat surface print side down.

Place the plastic elements A from

the bottom, so as to freely move along the flat edge of the hole. Place lenses

in plastic elements A.

Attention!

Components A and B are not the same

Smart Goggles assembly

Pre-shape elements along

the folding lines

Smart Goggles assembly

Pay attention to fold

the semi-circular elements marked with PUSH inward and

to put it in the appropriate notches marked with

the same number

Smart Goggles assembly

Stick velcros included

in the set

Watch a movie and find out how easily you can assemble the Smart Goggles
